Top Panel
از چپ به راست
New, Open, Save, Print, Fonts, Lock, UCS, Layers, Coordinates, Viewports,
Zoom (In, Out);
Right panel
از بالا به
پائين
TIN points, TIN points tracking, TIN triangles, TIN triangles tracking,
Boundary lines, Break lines, Topography, Plan-profile tracking,
Objects, Profiler, 3d Scene, Snap, Ortho, Grid, Color;
Draw objects panel
از چپ به راست، از بالا
به پائين
Point, Line (Single, Double, Nuclear), Polyline (Sketch, Hatch,
Ruler), Polygon, Circle, Ellipse, Donut (pie), Circular curve, Two
centered circular curve, Three centered circular curve, Four centered
circular curve, Reverse curves, Parabolic curve, Spiral curve, Cloverleaf
curve, Broken-back curve, Text, Icon, Symbol, Map, Block, Dimensioning,
Cube, Cylinder, Cone, Sphere, Torus, 3D extrude, 3D rotate, 3D loft,
3D sweep, 3D mesh, 3D route;
Modify objects panel
از چپ به
راست از بالا به پائين
Erase, Purge, Undo, Redo, Move, Copy, Multiple copy, Mirror, Rotate
Scale, Matrix copy rectangular, Matrix copy polar, Fillet/Chamfer,
Offset, Extend, Trim, Pivot, Polyline edit, Object properties wizard,
Explode;

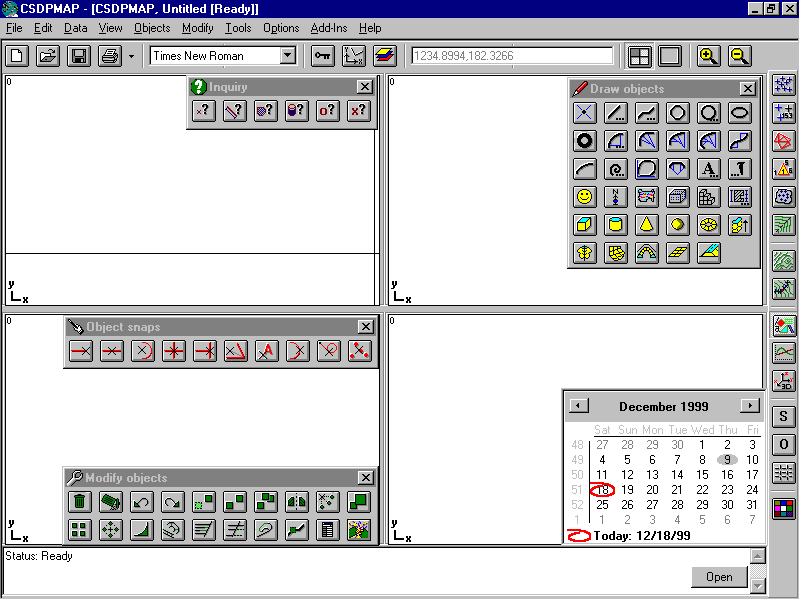

Object snap panel
از چپ به
راست از بالا به پائين
End, Middle, Center, Intersection, Perpendicular, Bisect, Insert,
Quadrant, Tangent, Nearest;Inquiry panel: Point ID, Distance, Area,
Grading Volume, Object information, Object coordinates;Four separated
drawing windows (viewports); normal or full screen; has its own
zoom/pan states up to 20 levels each.
چهار Viewports كه هر يك بمثابه صفحه اي مستقل از ديگري عمل مي نمايند و امكان
Maximize هريك از Viewport ها به Full screen وجود دارد.
هر يك از Viewport ها، يك محموعه
جداگانه از اطلاعات مربوط به Zoom
Window و Pan هاي متوالي را
ذخيره مي نمايند.
|
